Sold out

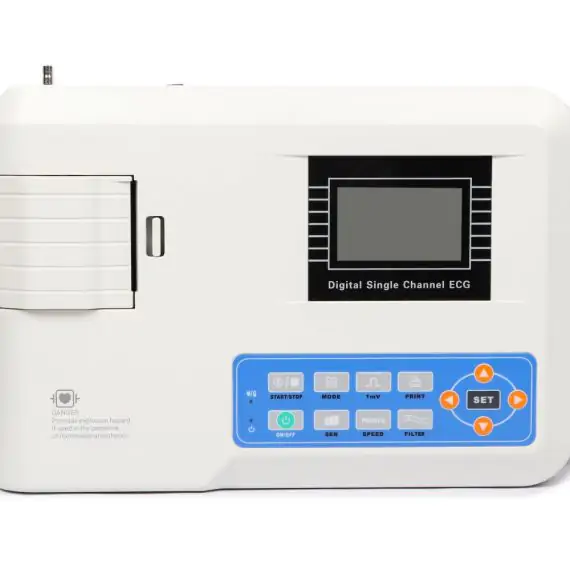

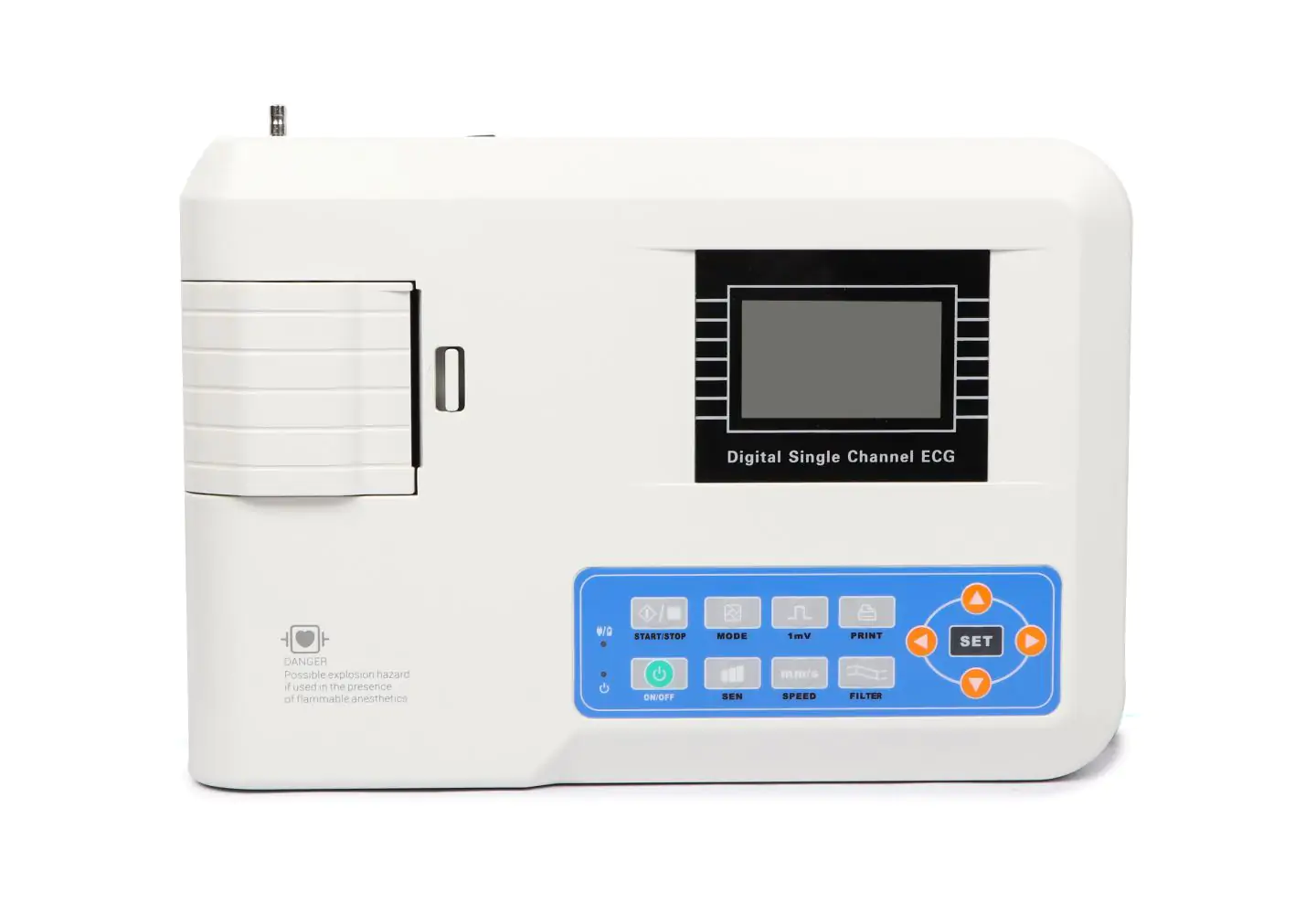

Contec ECG 100G (Single Channel)
₹19,590.00₹30,000.00
Out of stock
- Record single-channel ECG waveform and annotation continuously.
- AC/DC, built-in rechargeable lithium battery. up to 7-hour standby time,
- Continuous print up to 4-hour,
- Record up to 150 ECG waveform.
- Print the ECG waveform by the high-resolution thermal printing system.
- Display waveform clearly and accurately by STN-LCD
- Multi-language interface.
Description
Contec ECG 100G (Single Channel) Features:
- Large LCD display waveform and data
- The high-resolution thermal printing array system
- Frequency response is as high as 150 Hz
- Capable of printing continuously on channel trace and annotations including lead mark and parameter such as sensitivity, paper speed and filter operation status
- High-resolution digital filter inhibits baseline drift without affecting ECG waveform
- Floating input circuit meets IEC safety standard
- Rechargeable battery supporting more than 50 patient examinations
- Internal software: GB, FR, IT, ES, DE, TR
Contec ECG 100G (Single Channel) Specifications:
- Safety Type: Class I, type CF applied part, which has defibrillation-proof applied part
- Lead Standard 12 leads
- Input way: Floating and defibrillation protection
- Patient leak current: <10µA
- Sampling rate: 1000Hz
- A/D conversion: 12bit
- Frequency response 0.05Hz~150Hz (-3dB, + 0.4dB)
- Time constant: >3.2s • CMRR: >60dB, >100dB(Add filter) • Enduring polarization: voltage ±500mV
- Noise level: <15µVp-p Dispose Wave Data
- EMG interference filter 35Hz (-3dB)
- AC filter 50Hz/60Hz (=20dB) Waveform output
- Recording way: Thermal printing system
- Recording paper: 50mm(W)×20m(L)
- Sensitivity: 5, 10, 20mm/mV
- Paper speed: – Auto-record: auto leads changing – Rhythm record: 25 mm/s, 50 mm/s – Manual-record: 25 mm/mV, 50 mm/mV Power supply
- AC: 110-220V, 50/60 Hz
- DC: 7.4V, 3700 mAh rechargeable lithium-polymer battery Fuse
- 2 pcs f5×20mm AC time lag; T250mA/250V(Power Supply:220V)
- Size 315 x 215 x 77 mm
- Net Weight 2.25 kg
In the box:
- ECG cable – 1 set
- Limb electrode clamp – 1 set
- Chest electrodes – 1 set
- Ground wire
- Power connection
- Paper roll
Documents:
Additional information
| Warranty | 1 year |
|---|
