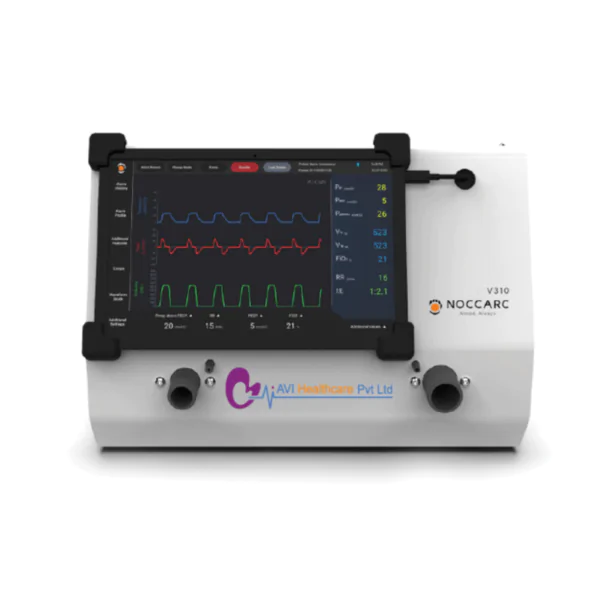

Noccarc v310 Ventilator
₹500,000.00₹600,000.00
Out of stock
Carefully Crafted with the combination of cutting edge research and Advanced Processes, the turbine-based design of noccarc v310 enables highly efficient independent operation and a wide range of ventilation modes offering up to 8hrs of battery backup
Description
Unique Features:
HIGH VALUE-TO-PRICE OFFERING
HFOT MODE
Noccarc V310 HFOT mode when used with humidifier, is capable of delivering up to 100% humidified and heated oxygen at a flow rate of up to 100 LPM. High flow therapy increases alveoli recruitment and delivers high FiO2 , while offering increased patient comfort
10″ TOUCH SCREEN INTUITIVE UI
The integrated 10 inch Touchscreen Interface provides great monitoring and controlling capabilities. The customized interface is designed considering inputs from healthcare professionals and has been created for quick, easy and intuitive usage. A screen lock feature prevents accidental changes
8 HRS BATTERY BACKUP
Noccarc V310 is a powerful turbine based ventilator with a battery backup of upto 8 hours. The compact, independent and power efficient design enables it to operate without compressed medical air or compressor, making it ideal for ICUs as well as intra hospital transport
WEANING MODE
Noccarc V310 PSV mode stabilizes the patient’s spontaneous breathing and reduces ventilation support. PSV modes provide a comfortable environment, enabling a seamless transition from controlled ventilation to patient contribution
ADVANCED THERAPY
Noccarc V310 APRV mode facilitates spontaneous breathing by delivering continuous airway pressure with brief releases. The dual level supported breaths can help improve oxygenation and protect lungs against compliances
NON-INVASIVE VENTILATION (NIV)
We provide the latest secured network solutions to our all customers using service from proven technology.
Noccarc ICU Ventilator Specs:
Modes: PC-CMV, PC-AC, PC-SIMV, VC-CMV, VC-AC, VC-SIMV, PRVC-CMV, PRVC-AC, PRVC-SIMV, PS/CPAP (PSV), APRV, High Flow Nasal Cannula (HFNC mode)
Technical Specifications :
- Peak Pressure: 60 cm H2O
- Peak Respiratory Rate: Upto 80 BPM
- Inspiratory Time : 0.2 – 5s
- Tidal Volume : 50 – 2000 ml
- Peak Flow Rate: 280 SLPM (Internally restricted to 160 SLPM)
- PEEP :0 – 40 cm H2O (increments of 1 cm H2O)
- Pressure Support : 0 – 50 cm H2O
- Inspiratory Hold: Yes
- Expiratory Hold: Yes
- I:E Ratio: 1:6 to 6:1
- Trigger Flow Sensitivity : 1 SLPM – 20 SLPM Volume Accuracy : 2-3 % of the full scale between 10 LPM – 80 LPM
- Dimensions : 395 X 340 X 255 mm
- Weight: 10.1 Kg
- Oxygen Input Pressure: 45 – 60 PSIG
- Battery Type: Lithium-Ion
- Leak Detection and Compensation: Yes
- Quick Ventilation Mode for
- Emergency Use: Yes
- Programmable SIGH: Yes
- Electronic FiO2 Manipulation: Yes
- FiO2 Manipulation between 21% to 100%: Yes
- FiO2 Delivery Independent of
- Flowrate, PEEP, and Minute Volume: Yes
3000
VENTILATORS INSTALLED
500
GOVERNMENT & PRIVATE HOSPITALS
50000
LIVES SAVED (ESTIMATED)
9000
HEALTHCARE PROFESSIONALS TRAINED
