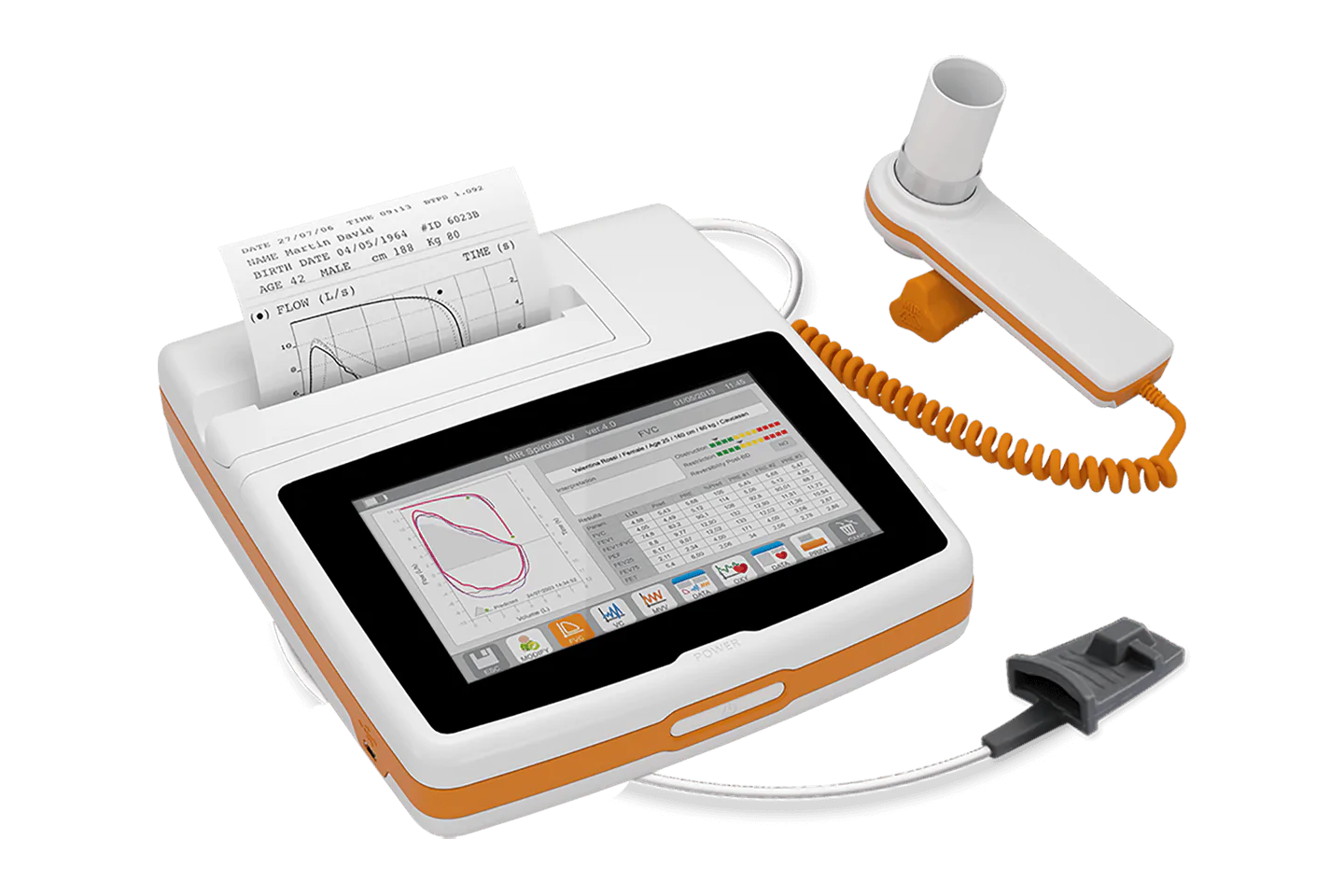

MIR Spirolab Touch Screen Portable Desktop Spirometer
₹257,812.00₹285,000.00
Out of stock
7-inch Touchscreen, all-in-one Spirometer with embedded printer, Real-time test also available on PC, via USB and Bluetooth. Perfect suite in Hospitals and Asthma camps, with its fast and silent built–in thermal printer with customizable printout format. Lightweight for easy mobility, carrying case included, long life Rechargeable Battery.
Description
MIR Spirolab Touch Screen Portable Desktop Spirometer, also known unofficially as Spirolab 4, features a seven-inch TFT touch screen and a long-life rechargeable battery that makes it ideal for mobile and office spirometry.
- FVC, FEV1, IVC, MVV, PRE/POST Bronchodilator comparison with a wide range of selectable parameters
- Pediatric Incentive for Spirometry
- Built-in printer with customizable printout format
- 7-in TFT color, touchscreen
- Store up to 10,000 spirometry tests or 900 hours of oximetry recording
- Optional pulse oximetry
- Long-life rechargeable battery
- Winspiro PRO® PC software
- Bluetooth® 2.1 and USB connectivity
- Real-time curves with PRE/POST Bronchodilator comparison
- Wireless or via cable Real Time test directly on your PC
- Quanjer 2012-GLI Predicted values with LLN and Z-score
- EMR integration
MIR Spirolab Touch Screen Portable Desktop Spirometer Technical Specifications:
Power supply: Rechargeable battery and mains power
Temperature sensor: semiconductor (0-45°C)
Flow sensor: bi-directional digital turbine
Flow range: ±16L/s
Volume accuracy: ±3% or 50mL
Flow accuracy: ±5% or 200mL/s
Dynamic resistance: <0.5 cmH2O/L/s
Connectivity: USB 2.0, Bluetooth®
2.1 Display: 7inch colour touch screen LCD,
800×480 resolution
Spirometry parameters:
FVC, FEV1, FEV1/FVC, FEV1/VC, PEF, FEF25, FEF50, FEF75, FEF25–75, FEF75–85, Lung Age, Extrapolated
Volume, FET, Time to PEF, FEV0.5, FEV0.5/FVC, FEV0.75, FEV0.75/FVC, FEV2, FEV2/FVC, FEV3, FEV3/FVC,
FEV6, FEV1/ FEV6, FEV1/PEF, FEV1/ FEV0.5, FIVC, FIV1, FIV1/FIVC, PIF, FIF25, FIF50, FIF75, FEF50/FIF50,
VC, IVC, IC, ERV, IRV, Rf, VE, VT, tI, tE, VT/tI, tE/tTOT, MVV (measured), MVV
(calculated).
