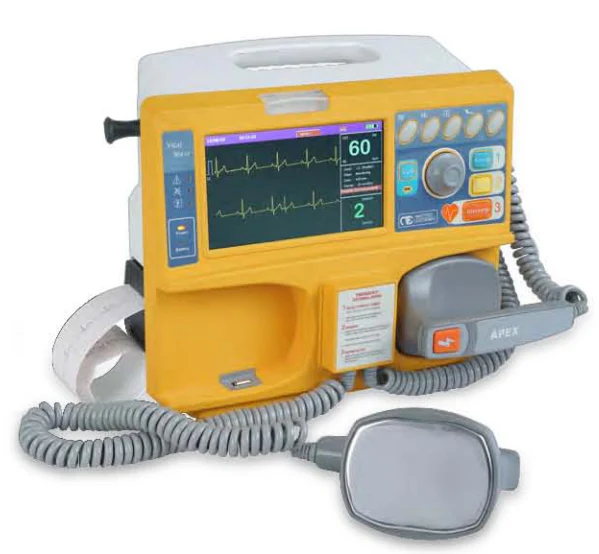

Maestros Vital Wave Portable Biphasic Defibrillator

• 7” Color TFT Display
• Easy Energy Selection Up To 270 Joules
• Less Than 8 Seconds For Full Charge 270 Joules
• More Than 50 Shocks On Full Charge Battery
• Event Trend And Storage Up To 24 Hrs
• Ecg Acquisition Via Paddles & Cable
• Upgradable To Spo2 & NIBP

Maestros Vital Wave Portable Biphasic Defibrillator Benefits:

• Optimized Defibrillation with Biphasic Waveform Technology: Biphasic waveform technology enhances the effectiveness of defibrillation, optimizing the chances of successful resuscitation and improving patient outcomes.

• Rapid Response with Portable Design: The compact and portable design facilitates rapid response to emergencies, enabling healthcare professionals and first responders to bring the defibrillator to the site of a cardiac event quickly.

• Confident Decision-Making with User-Friendly Interface: The user-friendly interface guides users through the defibrillation process, providing clear prompts and intuitive controls for confident decision-making during critical situations.

Maestros Vital Wave Portable Biphasic Defibrillator

Demo:

FAQs:

✅ 1. What type of defibrillator is the Vital Wave?

The Vital Wave is a portable biphasic defibrillator, designed to deliver controlled energy shocks using a biphasic waveform. This waveform is more effective than older monophasic designs and adjusts the shock in two phases for better patient outcomes.

📺 2. What display and interface does it feature?

It includes a 7″ color TFT touchscreen with an 800×480 resolution, offering clear ECG waveforms, heart rate readings, and energy selection prompts.

⚡ 3. What energy levels can it deliver and how fast does it charge?

The Vital Wave supports selected energy levels up to 270 Joules, and can fully charge to deliver that energy in less than 8 seconds.

🔋 4. What battery specifications are included? How many shocks per charge?

It features a 14.8 V, 4400 mAh Li‑Polymer battery. On a full charge, it can deliver over 50 shocks at 270 J, or provide 3+ hours of continuous monitoring.

🗂️ 5. Does it store event trends or ECG data?

Yes, the device comes with built-in event and ECG trend storage, retaining data up to 24 hours or trends from the most recent 25 events.

🩺 6. Does it support synchronized modes like S-Mode?

Yes, it features both synchronous (S-Mode) for therapeutic cardioversion and asynchronous (A-Mode) for emergency defibrillation.

📈 7. What are its ECG monitoring and acquisition options?

The Vital Wave supports ECG acquisition via both paddles and a standard patient cable (3-, 5-, or 10‑lead), displaying two waveforms simultaneously. It covers multiple lead configurations (I, II, III, aVR, aVL, aVF, V‑leads).

🔊 8. Are alarm systems included?

Yes, the unit has an integrated alarm system to signal critical conditions like low battery, arrhythmias, or technical faults .

⛅ 9. What are the operating environment specs?

• Operating temperature: 0–40 °C

• Humidity: Up to 90% non-condensing

• Dimensions: 403 × 324 × 152 mm

• Weight: Approximately 5.4 kg

🖨️ 10. Does it support ECG recording?

Yes, it has a built-in high-resolution thermal array recorder, using 57mm-wide paper at 25mm/s—printing ECG, heart rate, energy delivered, timestamps, and patient info.

⚙️ 11. What are the power requirements?

• AC input: 100–240 V, 50 Hz, ~45 W

• Battery charging: Approximately 8 hours

🛡️ 12. What safety features are included?

Standard safety includes synchronized cardioversion mode, clear energy level prompts, visual ECG display, and audible alarms for critical situations. It’s designed for ICU, EMS, and hospital environments .

📦 13. Is it portable and suitable for field use?

Yes—compact with paddle and cable integration, built-in recorder, and battery operation makes it ideal for hospitals, ambulances, and emergency response teams.

🛠️ 14. What is included with the defibrillator?

Standard package includes:

• Vital Wave defibrillator unit

• Rechargeable Li‑Polymer battery

• Paddles and patient monitoring cable (3/5 lead)

• User manual and starter ECG paper roll

📋 15. What warranty and service are offered?

The unit includes a 1-year warranty.

💸 16. What is the price range in India?

Pricing generally falls between ₹95,000 and ₹110,000.

📝 Summary Specs
