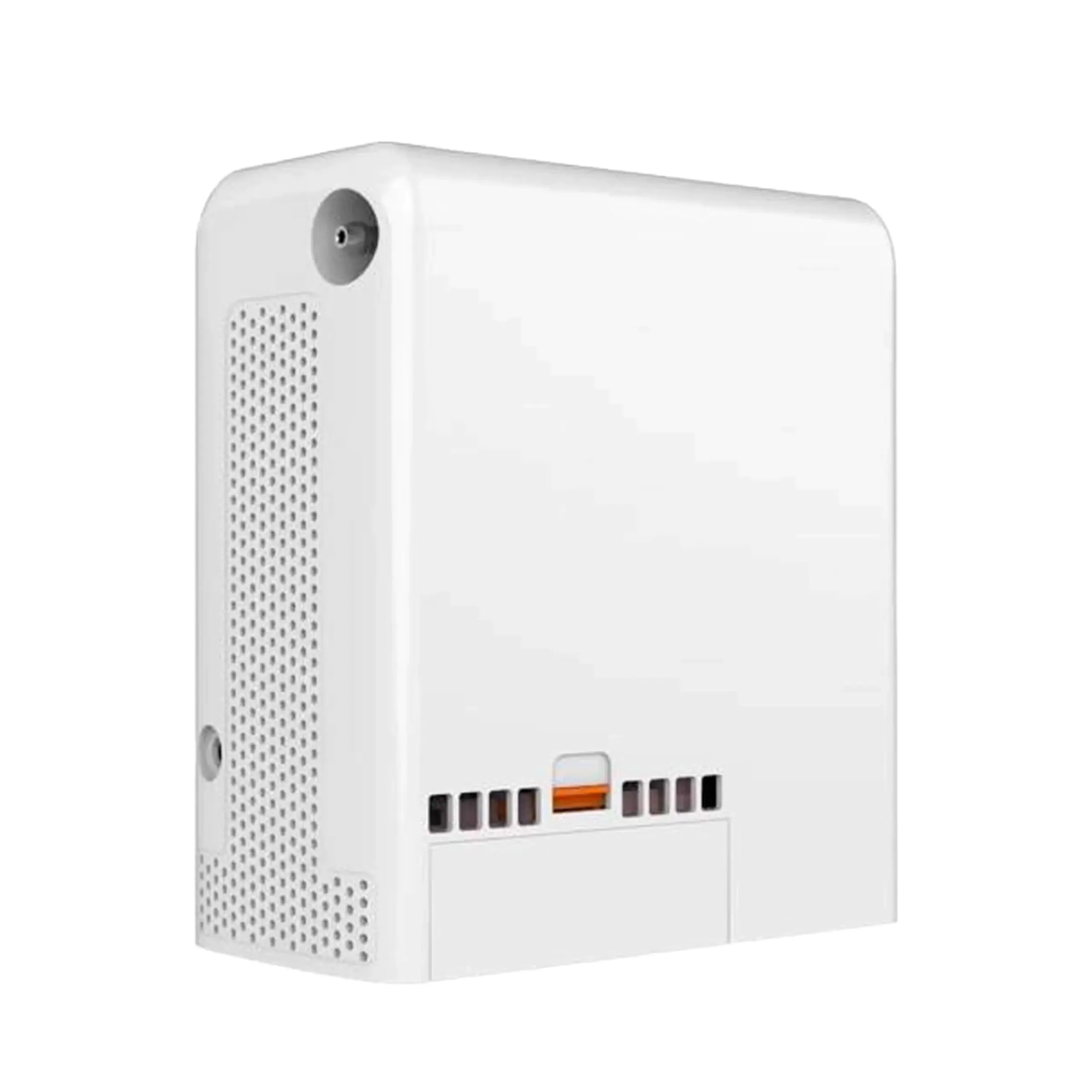

Deckmount Pulse Portable Oxygen Concentrator
₹115,000.00
Deckmount Pulse Oxygen Concentrator for prescribed portable pulse-dose oxygen therapy.
- Pulse settings 1–5; oxygen concentration ≥90%
- Detachable lithium battery; approximately 1.3–3 hours runtime
- 2.8-inch monitor and built-in device alerts
- Device warranty: 1 year; battery warranty: 3 months
Pulse settings are not equivalent to continuous-flow LPM. Includes one battery, AC adapter/charger, nasal cannula, filters and power cable. No humidifier bottle.
Description
DECKMOUNT PULSE · PORTABLE OXYGEN
Compact oxygen support.
Designed to move with you.
The Deckmount Pulse Oxygen Concentrator combines breath-triggered oxygen delivery with a compact cabinet, detachable lithium battery and an easy-to-read screen. Five pulse settings provide a clear control interface for prescribed portable oxygen therapy, while built-in alerts keep important device conditions visible.
Pulse settings
Oxygen concentration
Device warranty
Portable oxygen, with practical everyday features
Oxygen delivery linked to your breath
The Pulse detects inhalation and delivers oxygen in pulses through a nasal cannula. This approach supports portable oxygen use with settings from 1 to 5. Pulse settings are different from continuous-flow litres per minute, so your care team should check your oxygen needs on the actual device before selecting a setting.
A detachable battery for flexible planning
The removable lithium battery makes charging and battery management part of a practical daily routine. Specified runtime is approximately 1.3–3 hours, with an approximate charging time of 2.5 hours. Runtime varies with the setting, breathing pattern, battery condition and environment. Plan enough charge for your outing and allow a reserve for delays.
Clear controls and device monitoring
A 2.8-inch monitor provides a compact, accessible interface. The device includes alerts for no breathing detected, compressor shutdown, high system temperature, fan stall and low battery. These alerts help identify when the device or its connections need attention.
Small enough for a portable setup
The specified cabinet dimensions are 15 × 7.5 × 16 cm. The machine weighs 1.1 kg and the battery weighs 0.3 kg, giving a combined specified weight of 1.4 kg. Keep the ventilation openings clear when positioning or carrying the unit, and use accessories approved for this model.
Deckmount Pulse specifications
| Product | Deckmount Pulse / POC |
|---|---|
| Oxygen delivery | Breath-triggered pulse dose |
| Pulse settings | 1, 2, 3, 4 and 5 |
| Oxygen concentration | At least 90% |
| Maximum recommended oxygen output | 0.8 L/min in pulse delivery; not continuous-flow LPM equivalence |
| Specified respiratory-rate range | 10–40 breaths/minute |
| Display | 2.8-inch monitor |
| Dimensions | 15 × 7.5 × 16 cm (L × W × H) |
| Weight | Machine 1.1 kg; battery 0.3 kg |
| Battery | Detachable lithium battery |
| Battery runtime | Approximately 1.3–3 hours; conditions dependent |
| Charging time | Approximately 2.5 hours |
| Warm-up time | 3 minutes |
| Operating noise | ≤60 dB(A) at setting 5 |
| AC input | 100–240 V, 50/60 Hz; 60 VA maximum |
| Operating temperature | 5–40°C |
| Operating humidity | 10–90%, non-condensing |
| Warranty | Device: 1 year; battery: 3 months |
What’s included
- Deckmount Pulse Oxygen Concentrator
- 1 detachable battery
- AC adapter/charger
- Nasal cannula
- Filters
- Power cable
A humidifier bottle is not included.
Understanding pulse settings
A pulse setting cannot be substituted directly for a continuous-flow oxygen prescription. For example, setting 5 does not mean 5 litres per minute. Have your clinician assess the device at the activities and times for which you need oxygen. This is particularly important if your needs change during movement or sleep.
Preparing for use and caring for the device
Before going out, check the battery charge, cannula connection and prescribed setting. Keep the device upright as instructed and ensure the tubing is free from kinks. Ask your equipment provider to demonstrate the controls and alarm response so you know what to do if an alert appears.
Follow the model instructions for exterior cleaning and filter maintenance. Keep liquids away from the unit and power connections. Do not attach a humidifier or other accessory unless it is approved for this device. Store and charge the battery under the conditions specified in the manual.
Keep oxygen equipment away from smoking, flames and heat sources. Use the setting prescribed for this device and have a backup oxygen plan for battery depletion or equipment problems. Confirm airline acceptance of the exact device and battery before making air-travel plans.
Video guides: portable setup and oxygen safety
These American Lung Association videos explain general portable oxygen use, care and safety. They show other equipment; use the Deckmount manual for this model’s controls and maintenance.
Getting started with portable oxygen
General setup, battery planning and care of a portable oxygen concentrator.
Using oxygen safely
General precautions and practical guidance for prescribed oxygen therapy.
Warranty and support
The Deckmount Pulse device is offered with a 1-year warranty, with a separate 3-month battery warranty. Keep your invoice and serial-number details for assistance. Contact RespBuy for service and coverage information.
Frequently asked questions
What type of oxygen delivery does Deckmount Pulse use?
Deckmount Pulse delivers oxygen in pulses triggered by inhalation. This listing covers pulse settings 1–5; these settings are not continuous-flow litres per minute.
Does setting 5 mean 5 litres per minute?
No. Pulse-setting numbers are device settings, not equivalent continuous-flow LPM values. Your clinician should assess the setting that meets your oxygen needs on this specific device.
What oxygen concentration does it provide?
The specified oxygen concentration is at least 90% across the listed settings and respiratory-rate range.
How long does the battery last?
The specified battery-runtime range is approximately 1.3–3 hours. Actual runtime depends on the selected setting, breathing pattern, battery condition and operating conditions. Recharge time is approximately 2.5 hours.
What alarms are included?
Alerts cover no breathing detected, compressor shutdown, excessive system temperature, fan stall and low battery. Follow the device instructions and your backup oxygen plan if an alarm occurs.
What warranty is included?
The concentrator has a 1-year warranty and the battery has a 3-month warranty. Contact RespBuy for coverage and service details.
What comes in the box?
The package includes the Deckmount Pulse concentrator, one detachable battery, AC adapter/charger, nasal cannula, filters and power cable. A humidifier bottle is not included.
Can I use it during sleep or on a flight?
Your clinician must assess whether pulse-dose delivery is suitable during sleep. For air travel, confirm acceptance of the exact device and battery with the airline before booking; this listing does not claim airline approval.
Explore more oxygen concentrators at RespBuy. For general portable oxygen guidance, see the American Lung Association portable oxygen guide.
