EVOX-5S 5 Litre Oxygen Concentrator
₹33,000.00
View EMI & payment offers
Delivery in 1–3 days for most PIN codes. Confirm delivery for your location.

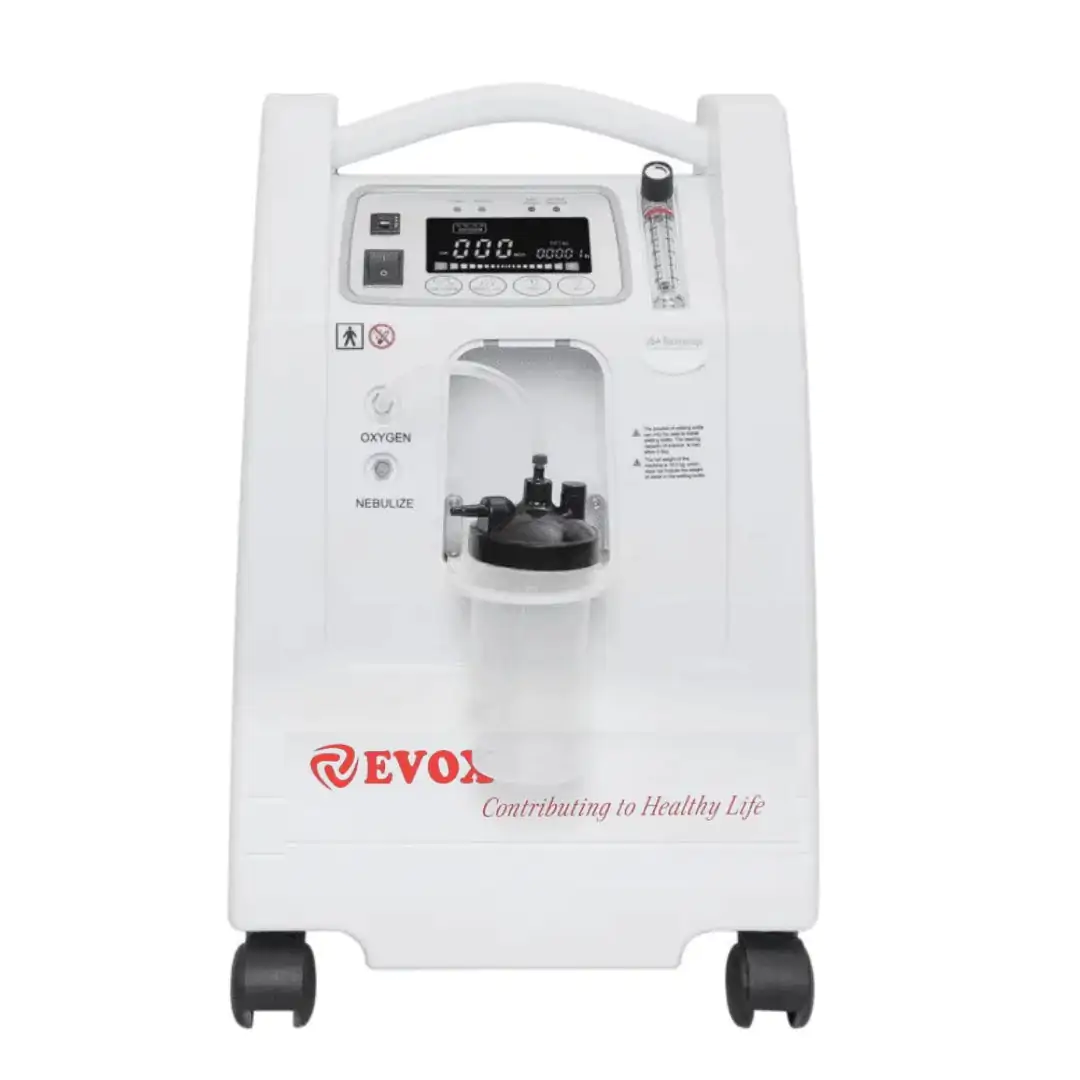

EVOX-5S 5 Litre Oxygen Concentrator with touch controls, oxygen-purity display and a separate nebulizer outlet.
- Adjustable 0.5–5 LPM flow; 93% ±3% oxygen purity
- 350 W power consumption; noise below 46 dB(A)
- 0–3 hour timer and accumulated-hours display
- Built-in alarms and protection functions
- 3-year warranty; supplied accessories included
Description
EVOX-5S · 5 LITRE OXYGEN CONCENTRATOR
Clear controls.
Practical oxygen care at home.
The EVOX-5S 5 Litre Oxygen Concentrator combines adjustable oxygen delivery with touch controls, an oxygen-purity display and a separate nebulizer outlet. Its integrated carry handle and castor wheels make it easy to position, while useful status information stays visible on the control panel.
Adjustable flow
Oxygen purity
Warranty
Why choose the EVOX-5S?
Information you can see at a glance. The display shows oxygen purity percentage, running time, accumulated hours and timer settings. Oxygen and nebulizer indicators help identify the selected function without relying on guesswork.
Convenient touch operation. Touch controls bring the oxygen, nebulizer and timer functions together on the top panel. The adjustable timer covers 0–3 hours. Use timing settings only in line with the prescribed treatment schedule; they do not determine how long a person needs oxygen.
Separate oxygen and nebulizer connections. A dedicated nebulizer outlet gives the built-in nebulizer function its own connection point. Follow the supplied instructions when selecting modes and connecting accessories. The presence of two outlets does not establish that both functions should be used simultaneously.
Practical handling and monitoring. The white cabinet has a moulded carry handle and wheels for positioning around the room. Built-in alarms and protection functions cover low oxygen, pressure faults, power interruption, compressor faults and overheating, helping users recognise when the equipment needs attention.

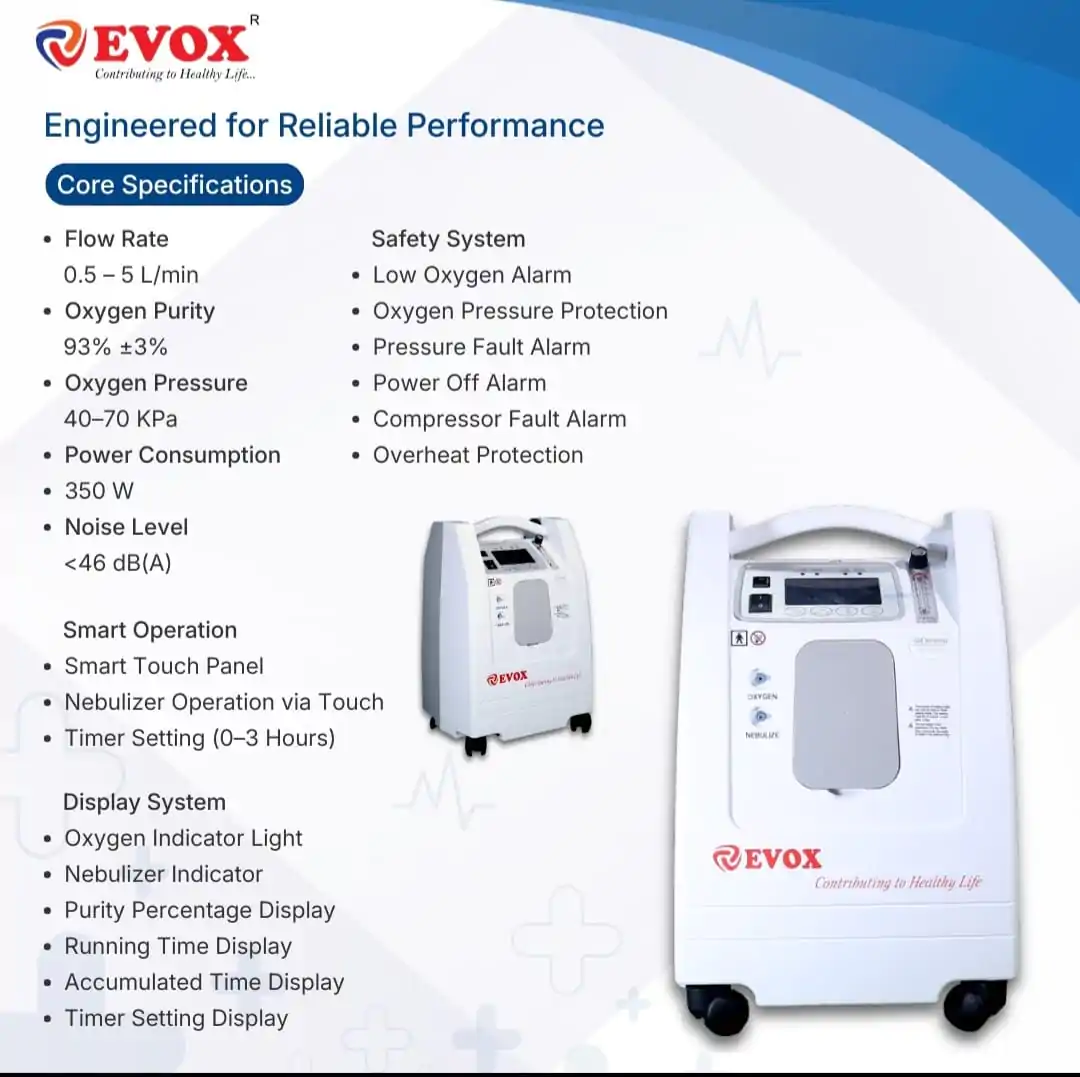

EVOX-5S specifications
| Model | EVOX-5S |
|---|---|
| Oxygen flow range | 0.5–5 L/min |
| Oxygen concentration | 93% ±3% |
| Oxygen output pressure | 40–70 kPa |
| Power consumption | 350 W |
| Noise level | Below 46 dB(A) |
| Controls | Smart touch panel |
| Nebulizer function | Touch-operated, with separate outlet |
| Timer | 0–3 hours |
| Display information | Oxygen indicator, nebulizer indicator, purity percentage, running time, accumulated time and timer setting |
| Alarms and protection | Low oxygen, oxygen-pressure protection, pressure fault, power off, compressor fault and overheat protection |
| Warranty | 3 years |
What’s included
- EVOX-5S 5-litre oxygen concentrator
- Humidifier bottle
- Nasal cannula
- Filters
- Power cable
- Nebulizer kit
- Outlet tube
Keep the oxygen and nebulizer accessories clearly identified when setting up the device. Ask your care team or equipment supplier to demonstrate the relevant connections and prescribed settings before first use.
Designed around a clear daily routine
Place the concentrator upright on a stable surface and keep its ventilation openings clear. Position the tubing so it is not pinched, pulled tight or left where someone could trip over it. Before each use, check the accessory connections and confirm the flow setting against the prescription.
If the humidifier is used, follow its instructions for filling, cleaning and reconnection. Inspect the cannula and tubing regularly, and replace worn or damaged components. Clean or replace filters according to the instructions for the particular filter; not every filter is washable. Keep water away from electrical parts and arrange service when required.
For a power interruption or equipment alarm, follow the backup plan agreed with the treating clinician. Keep oxygen equipment away from smoking, flames and heat sources. Do not adjust oxygen flow or nebulizer medication without clinical advice.
A closer look at the controls and features
Video guides: operation and care
EVOX operating demonstration
EVOX Group demonstrates the 5S oxygen concentrator. Control-panel appearance and accessory configuration may vary by production version.
Home concentrator setup and care
American Lung Association guidance using another concentrator. General education; follow the EVOX manual for model-specific instructions.
3-year warranty
This EVOX-5S package is offered with a 3-year warranty. Keep your purchase invoice and serial-number details for support. Manufacturer warranty terms apply; contact RespBuy for assistance with the service process and coverage questions.
Frequently asked questions
What flow rate does the EVOX-5S provide?
The adjustable flow range is 0.5–5 litres per minute. Set the flow to the level prescribed by your clinician.
What is the oxygen purity?
The specified oxygen concentration is 93% ±3%. The display shows oxygen purity, and the device includes a low-oxygen alarm.
Does the EVOX-5S have a nebulizer function?
Yes. It has a touch-operated nebulizer function with a separate nebulizer outlet. A nebulizer kit is listed in the supplied brochure. Use medication and nebulization only as prescribed, and follow the device instructions for mode selection.
What does the display show?
The display provides oxygen and nebulizer indicators, oxygen purity percentage, running time, accumulated time and timer settings.
What is included in the box?
The package includes the EVOX-5S concentrator, humidifier bottle, nasal cannula, filters and power cable. The supplied brochure also lists a nebulizer kit and outlet tube.
What warranty is offered?
This RespBuy listing includes a 3-year warranty. Manufacturer warranty terms and coverage conditions apply; retain your purchase invoice and device serial number for support.
Is this a battery-powered travel concentrator?
No. The EVOX-5S is a mains-powered stationary concentrator with a carry handle and wheels for positioning. It should not be confused with a battery-powered portable oxygen concentrator.
What should I do if an alarm sounds?
Check the supplied user instructions, follow your clinician’s backup-oxygen plan and contact the equipment supplier. Do not ignore an alarm or change your prescribed flow simply to silence it.
Compare more oxygen concentrators at RespBuy. For general safe-use guidance, see the American Lung Association home concentrator guide.
Additional information
| Warranty | 3 Years |
|---|
EVOX-5S 5 Litre Oxygen Concentrator
Q & A
EVOX-5S 5 Litre Oxygen Concentrator
The buying experience was smooth and very satisfactory. The machine was delivered within 48 hours, which I felt was exceptionally quick.
The product demonstration was conducted via video call. I would like to thank Mr Vikash for his instructions on setting up the machine for the first time.
Since then, I have started using it independently.
Overall, I had a very satisfying experience, from purchasing the machine to the demonstration arranged by Mr Vikash.
Thank you, Team RESPBUY!
Thanks
