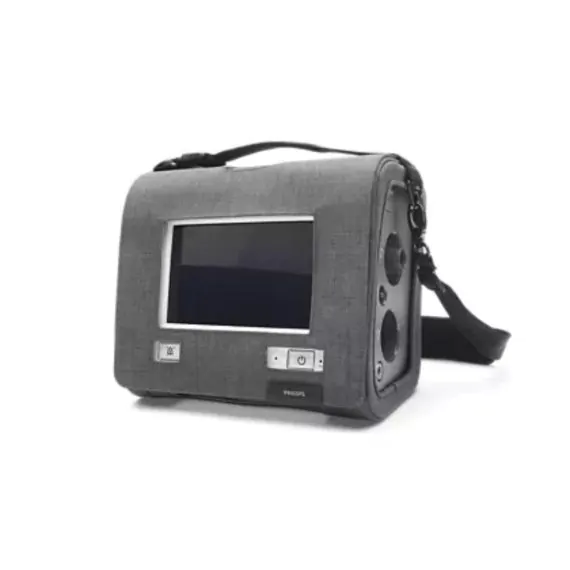

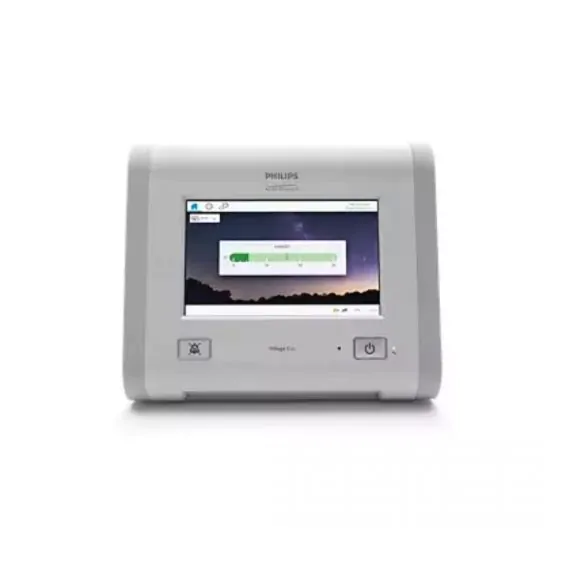

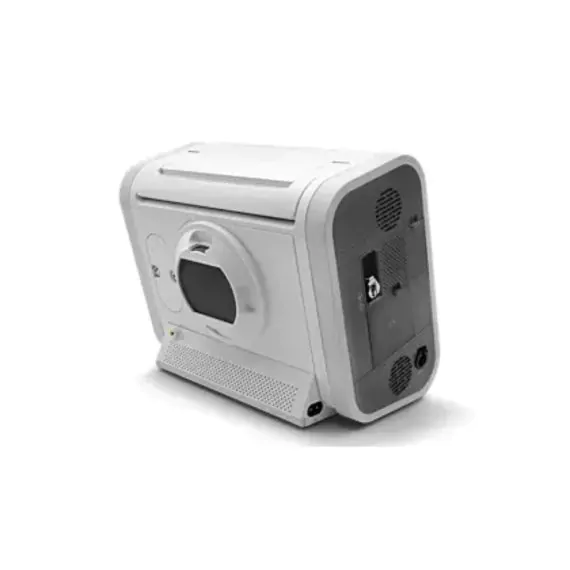

Philips Trilogy Evo Ventilator – 7 Advanced Features for Respiratory Support

350,000.00641,090.00

WA Order

Philips Trilogy Evo Ventilator is a portable ventilator that provides both invasive and non-invasive respiratory support, designed for use from hospital to home with long battery life and easy operation

PH-VD-Evo
Brand:
Brand:: Philips
Philips

Description

Philips Trilogy Evo Ventilator is a next-generation portable hospital-to-home ventilator designed to deliver consistent, high-performance respiratory support for patients across every stage of their care journey. Whether in a sub-acute facility, a chronic care ward, during medical transport, or in the comfort of the patient’s own home, Trilogy Evo provides the clinical reliability that both caregivers and patients depend on.

Powered by Digital Auto-Trak technology, the device features an automated breath triggering and cycling algorithm that continuously adapts to the patient’s natural breathing patterns — eliminating the need for manual adjustments and maximising ventilator-to-patient synchrony. Its AVAPS-AE (Average Volume-Assured Pressure Support) automatically targets the desired tidal volume, while Auto EPAP proactively adjusts to the lowest effective pressure to manage the upper airway, ensuring comfort and clinical precision at all times.

The Trilogy Evo supports both noninvasive (NIV) and invasive (IV) ventilation for adult, pediatric, and neonatal patients. With volume and pressure modes, SpO₂ and EtCO₂ monitoring, and alarms covering every parameter, the system provides a fully adaptable care platform for a wide range of respiratory conditions including COPD, ALS, and neuromuscular disease.

philips_trilogy eVO

One platform. Every patient. Every setting.

The Philips Trilogy Evo is designed to stay with your patients as their care needs evolve — from sub-acute and chronic care facilities to the patient’s own home. With expanded cross-functionality, it supports both chronic and critically ill patients with the same advanced clinical technology throughout their entire care journey.

Advanced Monitoring

Integrated SpO₂, EtCO₂, FiO₂ and respiratory mechanics monitoring to optimize therapy in real time without additional equipment

15-Hour Battery Life

Internal and detachable lithium-ion batteries provide up to 15 hours of operation — a significant advancement over the six-hour Trilogy 100 battery.


8″ Intuitive Touchscreen

Patient-friendly displays with universal ventilation mode names, on-screen alarm guidance, and fast prescription setup for confident caregiver use.


Digital Auto-Trak

Proprietary automated breath triggering and cycling algorithm adjusts to each patient’s natural breathing pattern for superior synchrony and comfort.


AVAPS-AE Technology

Average Volume-Assured Pressure Support automatically reaches target tidal volume; Auto EPAP adjusts to the lowest effective pressure for upper airway management.


NIV + IV Support

Comprehensive noninvasive and invasive ventilation for adults and pediatric patients, with flexible circuit configurations including single- and dual-limb circuits.



Ventilation modes

Supports a comprehensive range of modes for chronic and critical patient populations.

A/C VC
Assist Control — Volume
A/C PC
Assist Control — Pressure
CPAP
Continuous Positive Airway
S/T
Spontaneous Timed
SIMV VC/PC
Synchronised Intermittent
PSV
Pressure Support
MPV PC/VC
Mouthpiece Ventilation
AVAPS-AE
Volume Assured Pressure

Technical specifications

Device weight5.2 kg (11.5 lbs)
Dimensions16.5 cm D × 28.6 cm W × 24.5 cm H
Display8-inch colour touchscreen
Battery lifeUp to 15 hours (internal + detachable)
Patient populationAdult, Pediatric, Neonatal
Ventilation typeNoninvasive (NIV) and Invasive (IV)
MonitoringSpO₂, EtCO₂, FiO₂, Pulse Rate, Respiratory Mechanics
ConnectivityBluetooth, USB
Circuit configurationsSingle-limb and dual-limb
Maintenance intervalEvery 4 years (preventive)
Care settingsHospital, Sub-acute, Home, Transport

FAQ Section

The Philips Trilogy Evo is a next-generation portable ventilator designed for patients with chronic or critical respiratory insufficiency. It supports adult, pediatric, and neonatal patients and is suitable for use across hospital, sub-acute, home care, and medical transport settings. It is commonly prescribed for conditions including COPD, ALS, neuromuscular disease, and respiratory failure.

Yes. The Trilogy Evo is built to provide both noninvasive ventilation (NIV) and invasive ventilation (IV). It supports single-limb and dual-limb circuit configurations, making it adaptable for a wide spectrum of clinical needs — from mask-based NIV therapy to tracheostomy-connected invasive support.

The device supports over 10 ventilation modes including: A/C VC, A/C PC, CPAP, S/T (Spontaneous Timed), SIMV VC/PC, PSV (Pressure Support), AVAPS-AE, and MPV PC/VC (mouthpiece ventilation). This comprehensive range ensures it can meet the varying needs of both chronic and acute patients across all care environments.

Yes. The Trilogy Evo features an 8-inch colour touchscreen with patient-friendly displays, universal ventilation mode names, and built-in on-screen Help and Alarm guidance — specifically designed so that home caregivers can operate the device confidently with minimal training. Philips also provides educational training resources for patients and caregivers.

AVAPS-AE (Average Volume-Assured Pressure Support with Auto EPAP) is an advanced ventilation mode that automatically adjusts pressure support to consistently deliver the target tidal volume. Auto EPAP simultaneously adjusts expiratory pressure to the lowest effective level, making it particularly useful for patients with obesity hypoventilation syndrome or obstructive sleep apnoea alongside respiratory insufficiency.

The Trilogy Evo requires preventive maintenance only once every four years, which is significantly less frequent than many comparable ventilators. Philips also provides clinical product support, extended warranty options, and educational resources as part of its after-sales service package.
