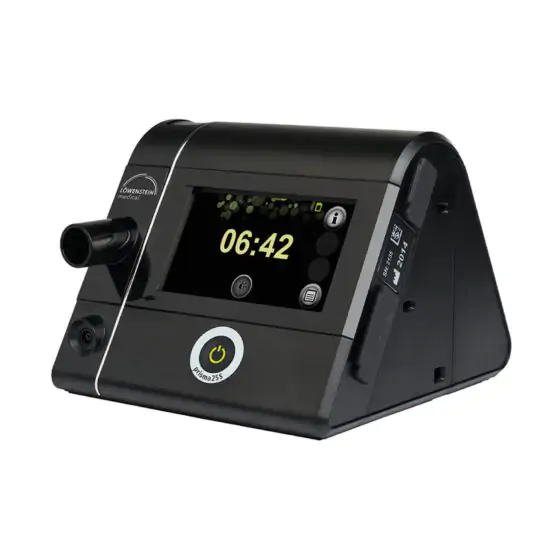

Loewenstein Prisma 25S BiPAP
Prisma 25S offers intuitive navigation and parameter setting to simplify and accelerate user operation. Patients with obstructive, mixed or complex sleep apnea who have high and /or fluctuating pressure needs and poor CPAP compliance will find the perfect therapy partner in prisma25S.
₹57,000.00₹80,000.00
Description
Product Features:
• Ventilation modes: CPAP, APAP, BILevel S, autoS
• Broad pressure range (4 – 25 hPa) and several adjustable parameters for greater flexibility in therapy settings
• Identification of periodic breathing, RERA, snoring, hypopnea, apnea and flow limitations
• High-resolution therapy data for 14 days and detailed statistics for 366 days
• Therapy software prismaTS for data analysis and remote control
• With SD card and USB port
• Telemedicine connection via modem for prisma CLOUD
• Eight clearly distinguished analog signals for PSG feed
Specifications:
- Temperature range : Operation: +5 °C to +40 °C , Storage: -25 °C to +70 °C
- Permitted humidity, rel. humidity 10 % to 95 %, operation and storage no condensation
- Air pressure range 700 – 1060 hPa corresponds to altitude of 3000 meters
- Diameter of breathing tube 22 mm
- Alarms: leak and disconnection
- Modes: CPAP, APAP, BILevel S and autoS
- Mean sound pressure: about 26.5 dB(A) at 10 hPa
- CPAP operating pressure range: 4 to 20 hPa
- BILevel operating pressure range 4 to 25 hPa
- Trigger auto or can be set at three levels
- Pressure increase speed can be set at three levels
- Peak flow as per ISO 80601-2-70, mode BIlevel, without humidifier
4.0 hPa 235 l/min
10.5 hPa 225 l/min
17.0 hPa 215 l/min
23.5 hPa 200 l/min
25.0 hPa 195 l/min - Accessories: Humidifier
In the box:
- Prisma 25S BIPAP Device
- Hose Pipe
- Filter
- Power Adapter & Cable
- Carry Bag
- User Manuals
- Humidifier (Optional)
Documents:
Loewenstein Prisma 25S BIPAP Brochure.pdf
Additional information
Weight | 1.4 kg |
---|---|
Dimensions | 17 × 13.5 × 18 cm |
Warranty | 2 Years |
