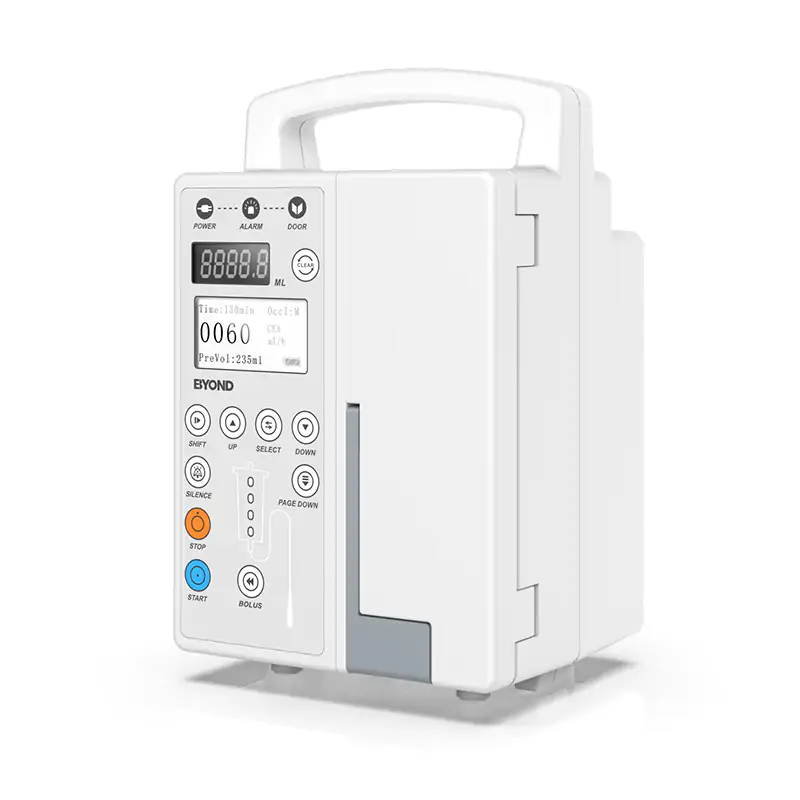

Byond Infusion Pump BYS-820
₹19,590.00₹35,000.00
Byond Infusion Pump BYS-820 is a bubble detector and pressure sensor infusion pump that can precisely detect air bubbles.
Description
Byond Infusion Pump BYS–820 is a bubble detector and pressure sensor that can precisely detect air bubbles. It features KVO and Bolus functions, a unique voice alarm system and an accurate injection rate to make the injection process safer and more reliable.
Byond Infusion Pump BYS-820 Features:
-
- Rate Control: Allow precise control of the flow rate of fluids or medications being delivered. This is important for ensuring accurate and consistent dosing.
- Multiple Modes: ml/h and drop/min with Purge function
- Compatibility: Compatible with any brands of infusion sets after correct calibration.
- Alarms and Alerts: Alarms and alerts to notify healthcare providers of any issues, such as occlusion, empty, low battery, end of infusion, door open, wrong setting.
- Programming Options: Three levels of occlusion: high, middle and low.
- Speical Feature: KVO (keep-vein-open) automatically opens as infusion is completed, KVO rate is 1-5ml/h(1ml/h step).
- Battery Operation: Built-in battery or an option for battery operation to ensure continued operation during power outages.
- User-Friendly Interface: HD LCD Display with large fonts and friendly user interface.
Byond Infusion Pump BYS-820 Specifications:
| Rate | 1ml/h ~ 1,200ml/h |
|---|---|
| Flow Rate Accuracy | Within ±5% (after correct calibration) |
| Mechanical precision | Within ±2% |
| Purge Rate | 100ml/h ~ 1,000ml/h (100 ml/h step) |
| Infusion Volume | 1ml ~ 9999ml |
| Total Infusion Volume | 0.1ml ~ 9999.9ml |
| KVO rate | 1ml/h ~ 5 ml/h (1ml/h step) |
| Occlusion | High: 800mmHg ±200mmHg (106.7kPa±26.7kPa |
| Medium: 500mmHg ±100mmHg(66.7kPa±13.3kPa | |
| Low: 300mmHg ±100mmHg (40.7kPa±13.3kPa ) | |
| Unique audible and visible alarm | Human voice alarm for End of injection, occlusion, door open, bubbles in the tube, wrong setting, low battery, AC power pulled out etc. |
| Power Source | AC 100V ~ 240V, 50/60Hz; Internal rechargeable Li battery, capacity≥1,600mAh, 4 hours internal battery backup |
| Bubble detector | Ultrasonic wave detector; detection sensitivity ≥25μL |
| Fuse | F1AL/250V, 2 pc inside |
| Power Consumption | 18VA |
| Operating Condition | Ambient temperature: +5℃ ~ +40℃; |
| Relative humidity: 20 ~ 90% | |
| Atmospheric pressure: 86.0kpa ~ 106.0kpa | |
| Transport & Storage Condition | Ambient temperature:-30℃ ~ +55℃ |
| Relative humidity: ≤95% | |
| Equipment Classification | Class II, internal power supply, Type CF |
| IP Classification | IPX4 |
| Dimension | 140mm (L) ×157mm(W) ×220mm(H) |
| Weight | 1.8kg (net weight) |
Byond Infusion Pump BYS-820 Box Contents:
- Infusion Pump
- Operating Manual
- Power Cord
- Clamp
Additional information
| Warranty | 1 year |
|---|
