Bionet FC1400 Fetal Monitor (CTG Machine)
₹104,990.00₹135,000.00
The FC 1400 is an antepartum touch screen fetal monitor which detects and displays twin fetus heart rates and uterine activity in real-time on the 7” color touch screen LCD monitor. Touch interface, along with 10 smart keys for 16 functions, makes the operation easier and faster.
Description
The FC 1400 is an antepartum touch screen fetal monitor which detects and displays twin fetus heart rates and uterine activity in real-time on the 7” color touch screen LCD monitor. Touch interface, along with 10 smart keys for 16 functions, makes the operation easier and faster. Built-in printer provides easy-to-read B4 size printout for charting. Onboard memory allows you to review and print up to 72 hours of internally stored data. USB flash drive interface provides a simple way to move the test result to PC for EMR attachment. Automatic fetal movement detection and TOCO zeroing reduces the need for staff involvement. CTG (Cardiotocography) interpretation provides the silent recommendation for NST (Non-Stress Test). The FC 1400 provides accurate and continuous obstetric measurements in the most rigorous clinical environments.
Features:
- Twin Fetus Heart Rates and Uterine Activity
- More Compact Probes and Robust Connectors
- Automatic Fetal Movement Detection
- Automatic TOCO Zeroing
- Clinical Mark and Note Entering
- CTG Interpretation
- 7” Wide Color LCD Viewer (800×480 Resolution)
- Touch Screen Operation Along with 10 Smart Keys for 16 Functions

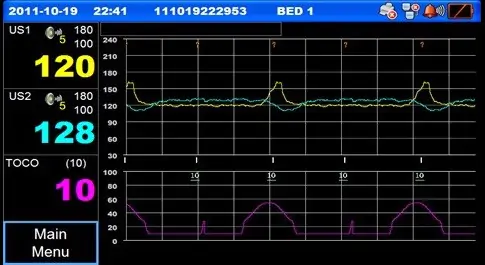

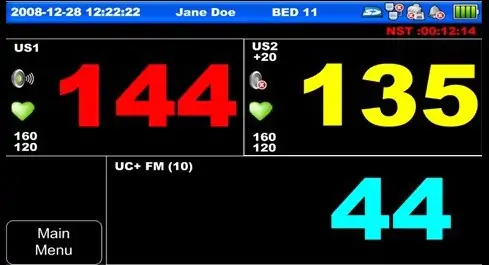

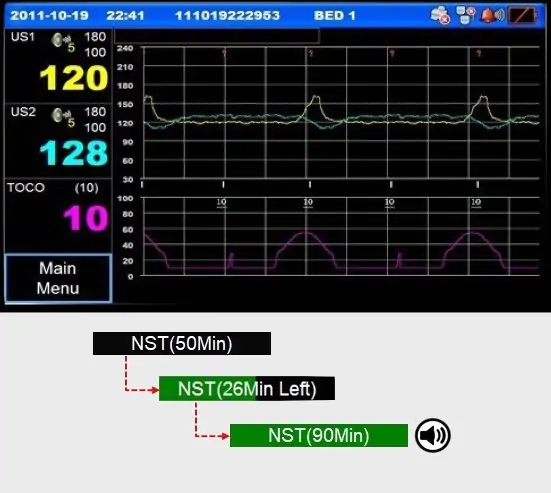

- Graphic and Text Display Mode
- Yellow/Green LED Alarm Lamp for Easier Recognition
- 72-Hour Trace Data Reviewer

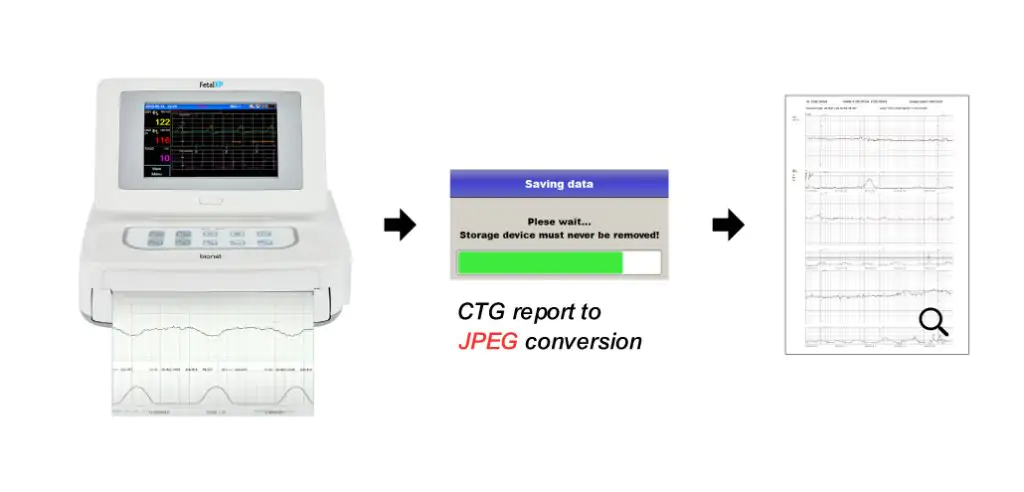

- USB Flash Drive Storage for Exporting JPG File to EMR
- High-Speed Printout of Stored Data
- Paper Feeding for Short Handwriting Memo
Specifications:
| Feature | Specification |
|---|---|
| Dimension | 296 (W) x 305.5 (H) x 97.5 (D) mm, approx. 2.6 kg |
| Display | 7″ TFT wide LCD screen (800 X 480) |
| Recorder | Method: Thermal array print Type: Roll type Print speed: – Real time mode: 1, 2, 3 cm/min – Trace mode: 20, 30 cm/min Paper feeding function |
| Power | Input: 100 – 240 VAC, 1.5 – 0.7 A, 50 – 60 Hz / Output: 18 VDC, 2.8A |
| Battery (Option) | Li-ion: 4 hours (charging) / 2 hours (discharging) |
| External Link | USB flash drive |
| Fetal Heart Rate | Input Signal: Ultrasound pulsed doppler Ultrasound frequency: 1.0 MHz, 975 KHz Ultrasound power: FHR detection method: Autocorrelation FHR range: 50~210 BPM FHR accuracy: 120~160: ±1 BPM / Except 120~160 BPM: ±2 BPM |
| Uterine Contraction | Input Source: External Transducer with load cell Reference Control: One touch switch, auto zeroing Measurement range: 0~99 |
| Fetal Movement Measurement | Detection source: Ultrasound pulsed doppler, event marker |
| Data Storage | Storage for 72 hours |
| Auto CTG Analysis | Average Baseline FHR Number of UC Number of Acceleration Number of Deceleration: Late, Early, Variable High/Low Episode Short term Variability Signal Loss * CTG Analysis results is printed out every 10 minutes (Intermediate report) |
| Standard Accessories | Ultrasound doppler probe – 2 UC probe – 1 Event marker – 1 Printer paper – 2 rolls Power adaptor & cord – 1 Ultrasound gel – 1 Probe belt – 3 Operation manual – 1 |
| Optional Accessories | Rechargeable battery, Cart |
Documents:
